X-BULL Electric Winch XPV 14500 Lbs 12V Synthetic Red Rope New Jeep Tractor 4WD Unavailable Platform - Amazon

specification

Product Information

Product Code:

W121843558

Product Type:

General items

Product Name:

X-BULL Electric Winch XPV 14500 lbs 12V Synthetic Red Rope New Jeep Tractor 4WD

Main Color:

black

Main materials:

aluminium

Product dimensions

Assembly Length (in.):

23.60

Assembly Width (inches):

13.70

Assembly Height (in.):

11.00

Weight (lbs):

56.00

Package size

Length (in.):

23.60

Width (inches):

13.70

Height (in.):

11.00

Weight (lbs):

61.00

Features:

1. Synthetic rope has good bending fatigue resistance, abrasion resistance, UV protection and chemical resistance. When the rope breaks, synthetic rope is safer than steel.

2. Efficient and durable Class 3 planetary steel gears provide greater traction for the 6.4HP series motors.

3. Easy to use and turn, the handle clutch fits perfectly in your hand even with winch gloves.

4. True 3-stage planetary gears enable differential, deceleration (growth), reversal, etc. The combination of multiple planetary gear systems allows for very large gear ratios, which makes it possible to achieve coaxial deceleration (growth).

description

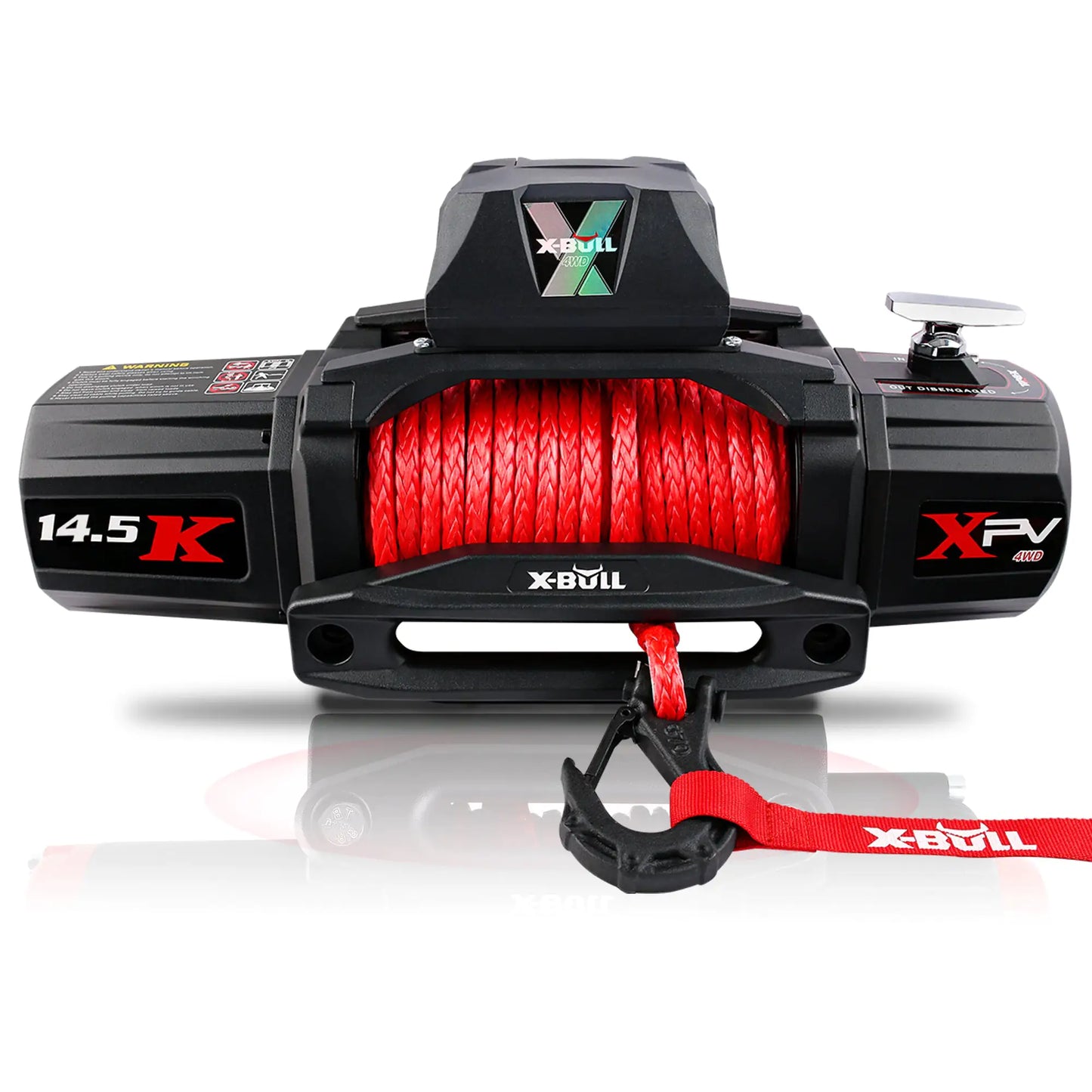

X-BULL 14500LBS winch

The X-BULL 14500lbs is one of our new X-BULL high-efficiency winches that we launched in 2021 for all our off-road and life-loving customers. Over the past few years, we have documented the project issues, needs, and recommendations that our clients are concerned about, and have overcome and implemented them one by one.

Notably, the X-BULL 14500lbs integrates the gearbox and updates the clutch and motor. The wireless remote control combined with the manual switch makes it easier for our customers to use. The clutch is specially designed to be ergonomically suitable for installation from different angles. Make it more comfortable for our customers to use.

description

Rated pull force: 14,500 lbs

Motor: 6.4hp

Gear ratio: 265:1

Recommended battery: 650CCA minimum

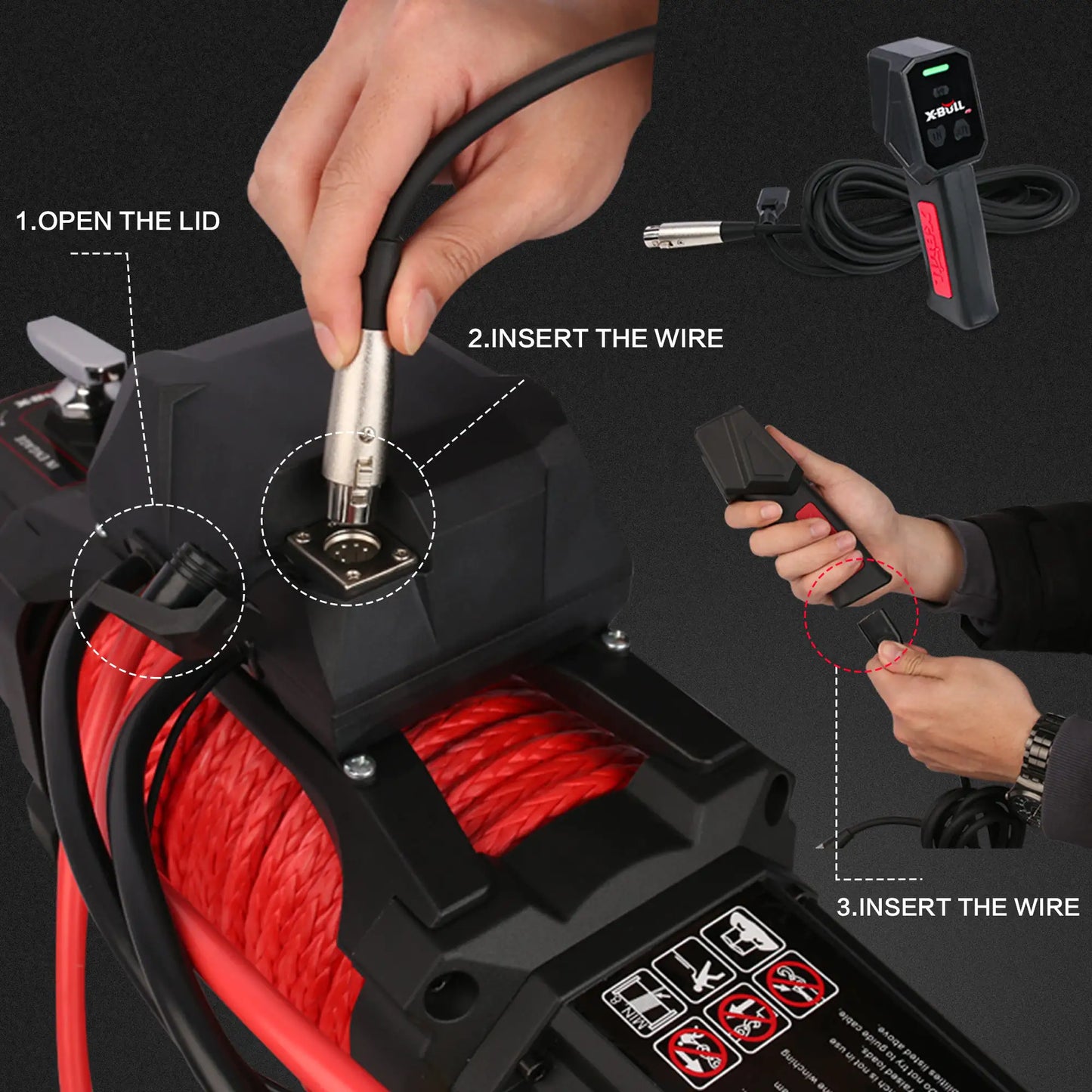

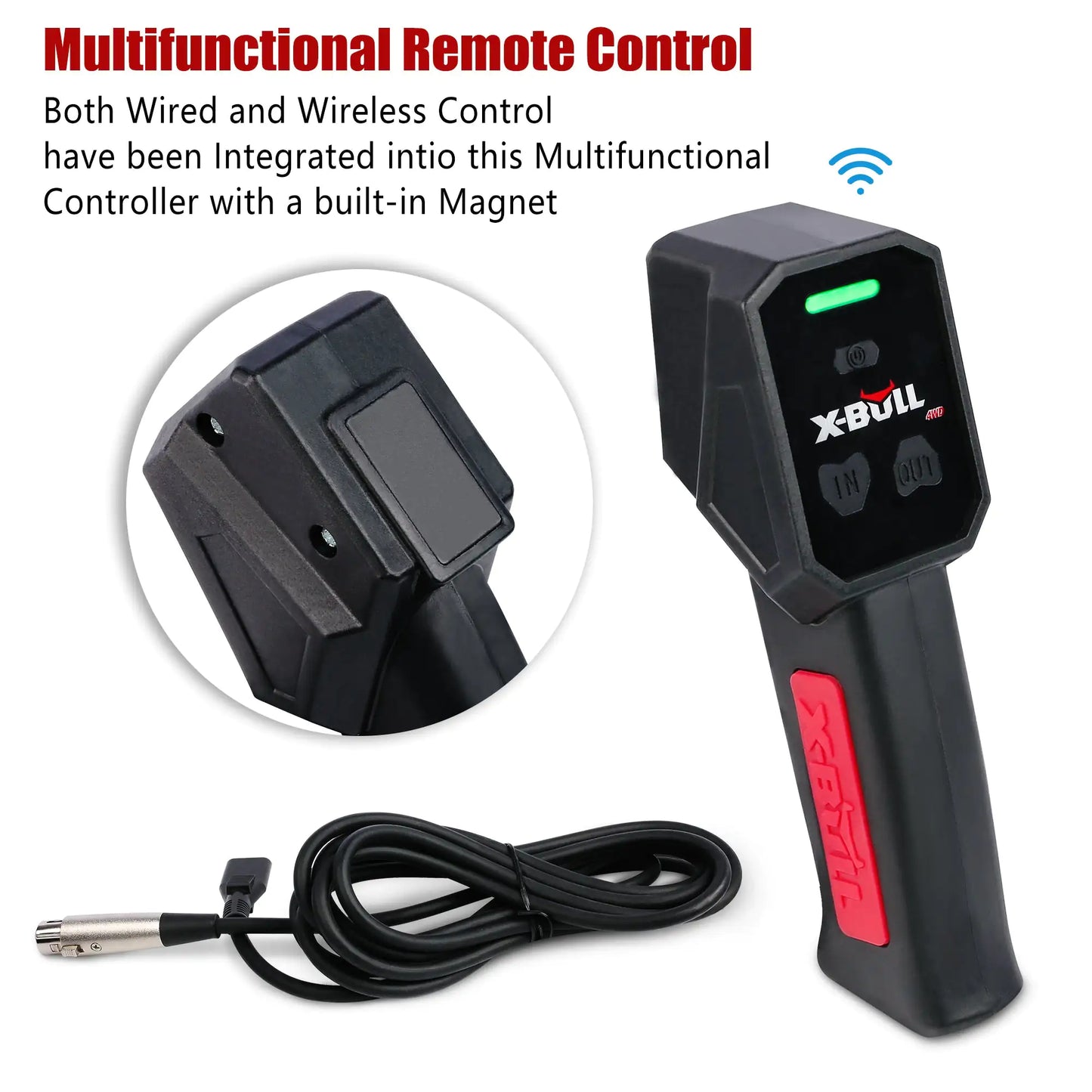

Remote control: Multi-function wireless remote control

Cable length: 9.5mm x 26m

Gear train: 3-stage planetary gears

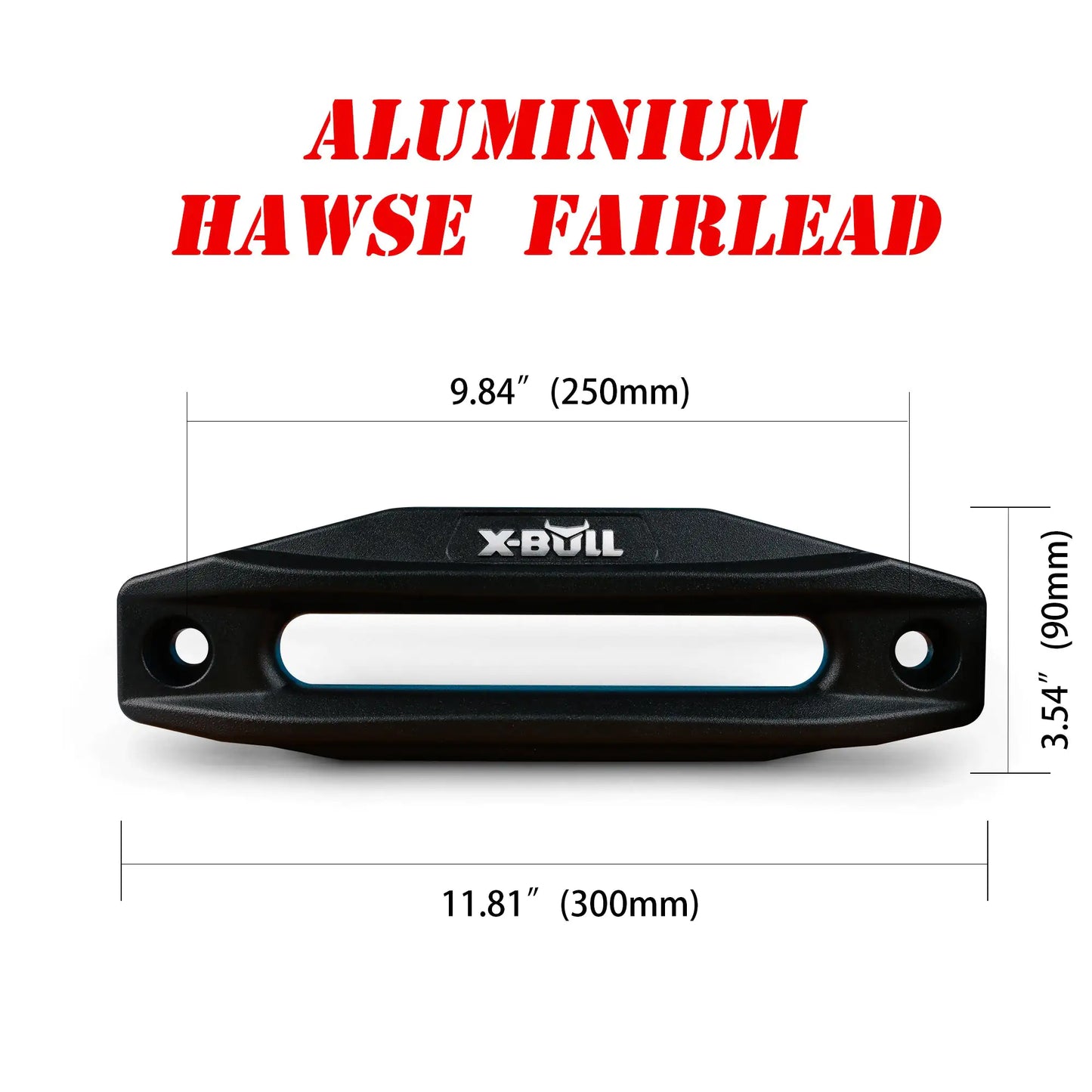

Fairlead: Aluminium Hawse fairlead

Weight: 61 lbs (27.5 kg)

Material: Stainless steel

Brakes: Automatic load holding brakes

Drum size: 2.52" × 9.6" (63.5 mm × 224 mm)

Mounting Bolt Pattern: 10.00±0.015" × 4.50±0.010" (254mm × 114.3mm)

Cable Material: Synthetic Rope

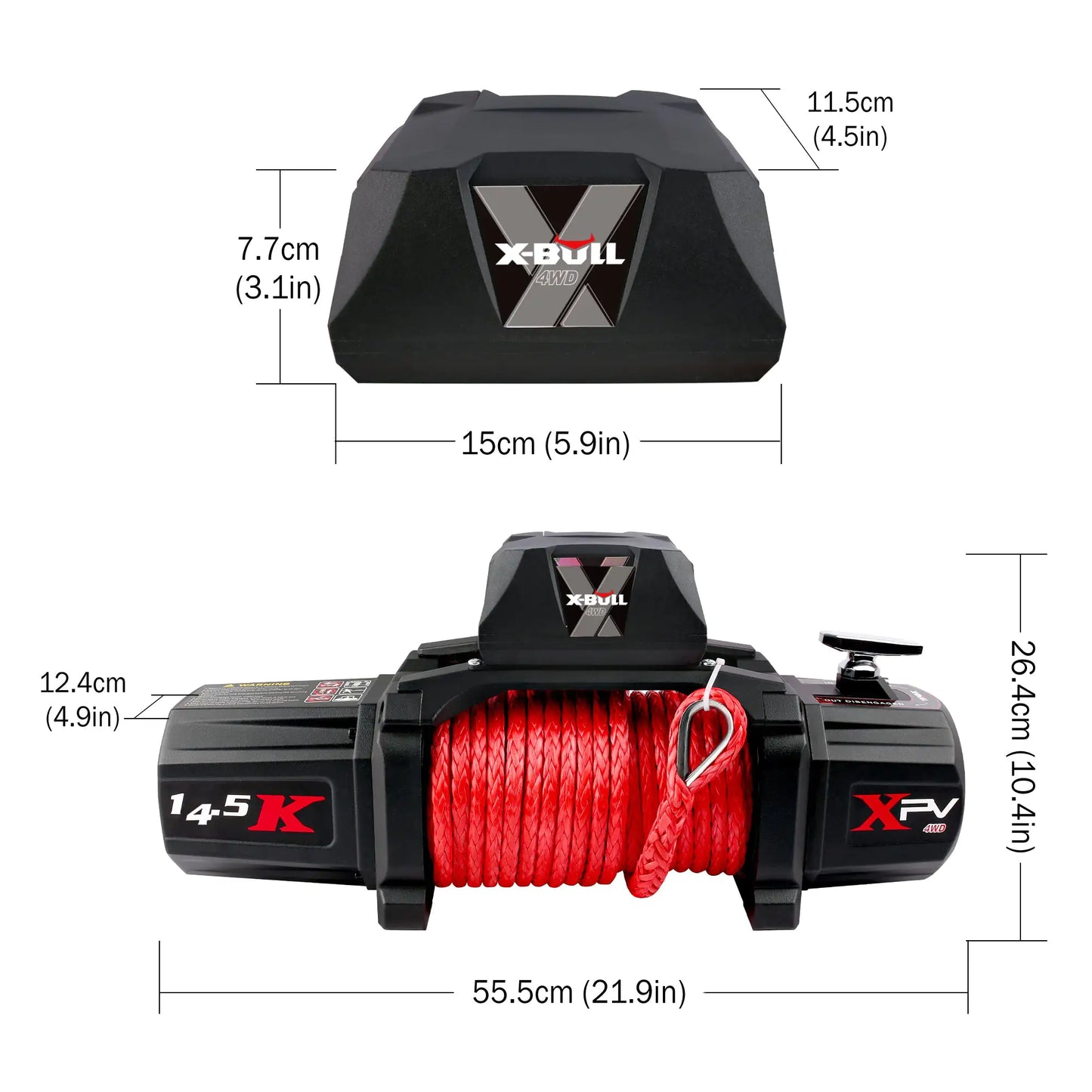

Dimensions: 526 mm× 160 mm× 218 mm

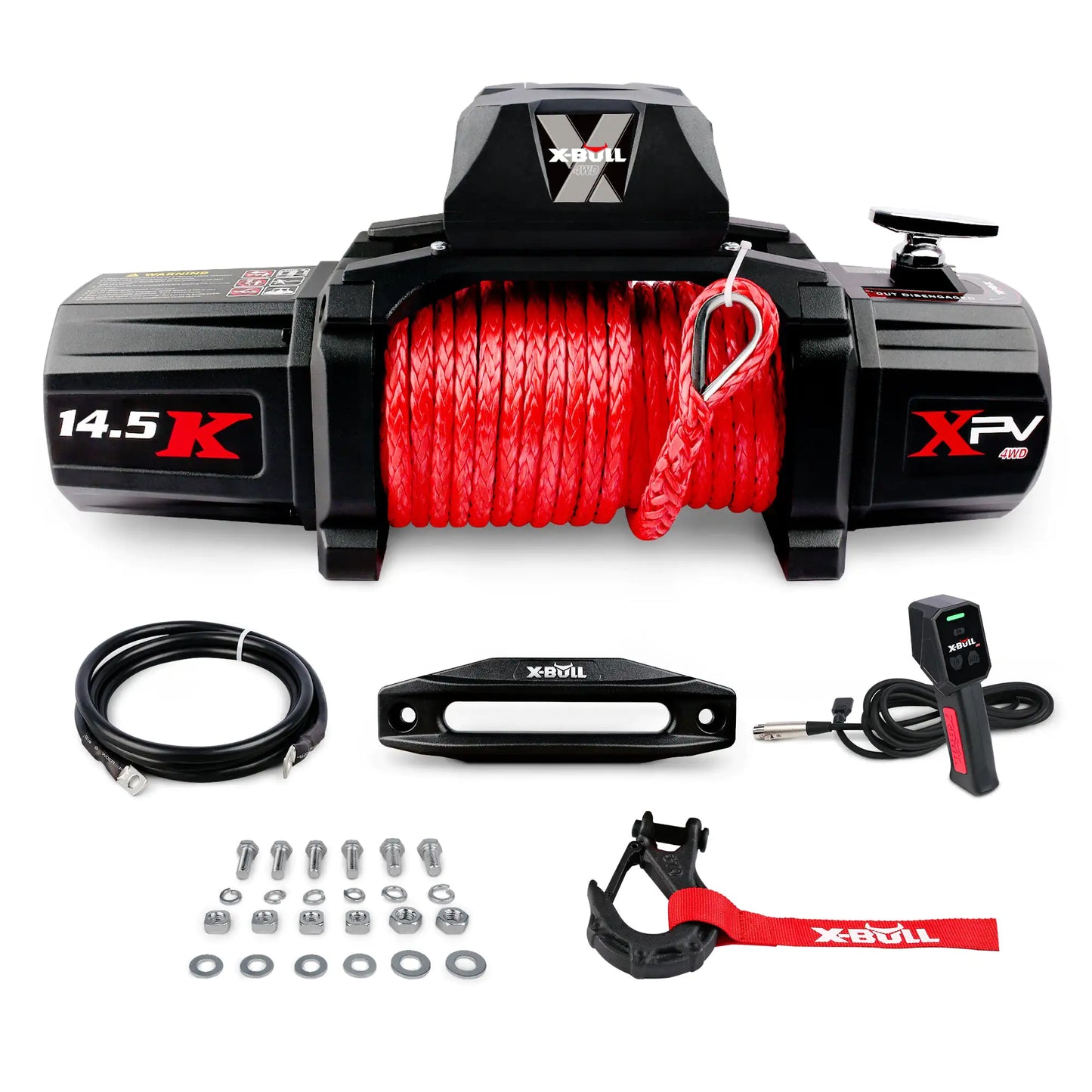

Package Included

14500LBS Winch x1

Hand Switch x1

Motor Leads x3

Multi-functional Remote Control x1

Aluminium Hawse Fairlead x1

Clevis Hook x1

Power Leads x1

Set of Bolts x1

Control Box x1

User Manual x1
